YellowScan designed new DJI Matrice 400 Integration Solutions
At YellowScan, we design and manufacture our own integration solutions to ensure seamless compatibility between our LiDAR payloads and a wide range of drone platforms. Our goal is to give surveyors the freedom to choose the UAV that best fits their operations while pairing it with the ideal YellowScan LiDAR system for their mission requirements.

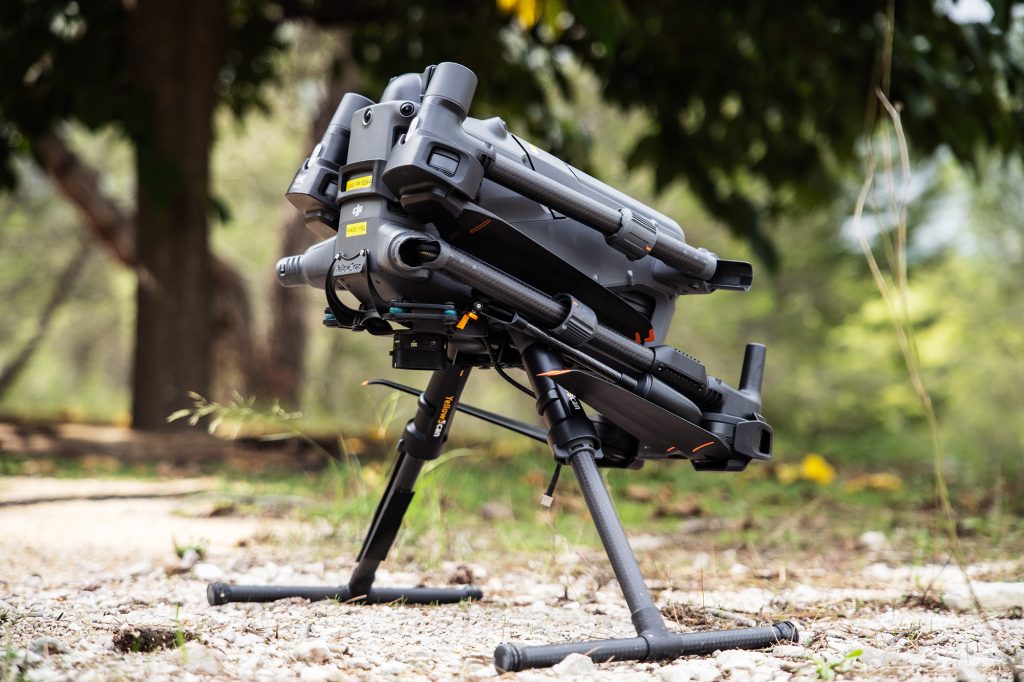

The DJI Matrice 400 and the new YellowScan accessories (without payload)
Since the release of the DJI Matrice 400, many partners and surveying professionals have requested a dedicated integration solution for the full YellowScan LiDAR portfolio. With a payload capacity of up to 6 kg, the Matrice 400 is a powerful and reliable drone platform capable of carrying every YellowScan LiDAR payload, making it an excellent choice for demanding mapping and surveying applications.
YellowScan® Mounting Bracket for DJI Matrice 400
Developed by YellowScan’s integration engineers, the Universal Mounting Bracket enables seamless integration of the DJI Matrice 400 with the complete YellowScan LiDAR product range.
Integrate the YellowScan mounting bracket with the DJI Matrice 400
Key features include:
- Compatible with all YellowScan LiDAR payloads
- Integrated GNSS antenna for a streamlined setup
- Supports the installation of a rear-mounted parachute system
- Lightweight design: only 391 g (13.8 oz)
- Robust and secure mounting for professional operations

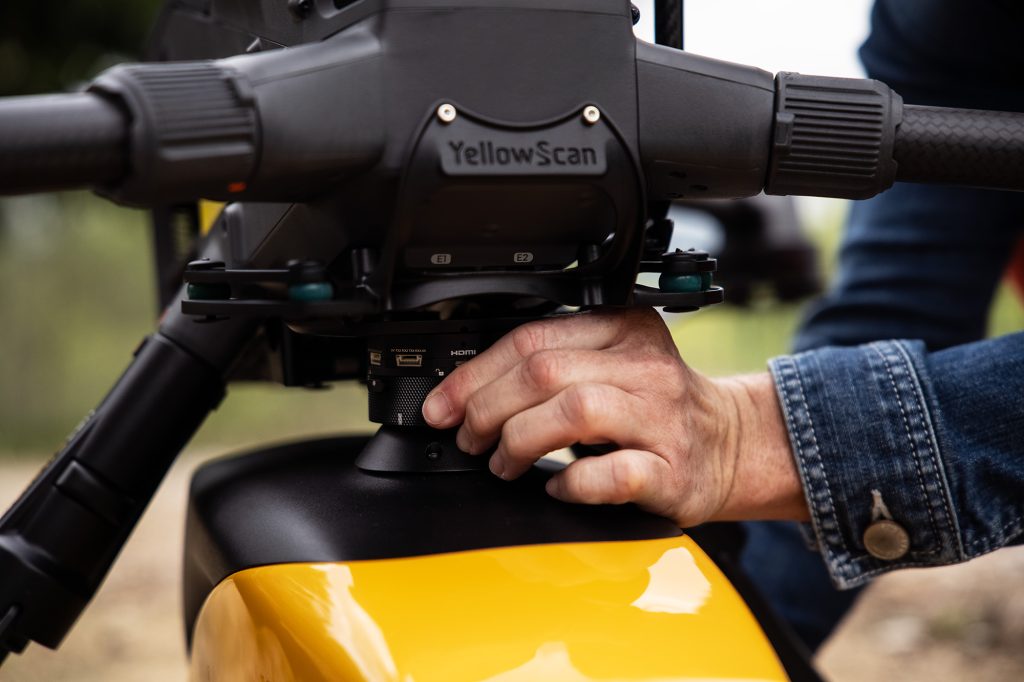

Switching from a YellowScan Surveyor Ultra to a YellowScan Navigator in a few seconds with the Gremsy Quick Release Adaptor.
YellowScan® Landing Gear Extenders for DJI Matrice 400
The Landing Gear Extenders Kit increases ground clearance, ensuring safe integration and operation of any YellowScan payload on the DJI Matrice 400.
New DJI Matrice 400 Landing Gear Extensions
The kit includes:
- Two 10 cm (3.9 in) landing gear extenders
- Weight: 136 g (4.8 oz) per extender
- Quick and secure installation
- Enhanced ground clearance for larger LiDAR systems

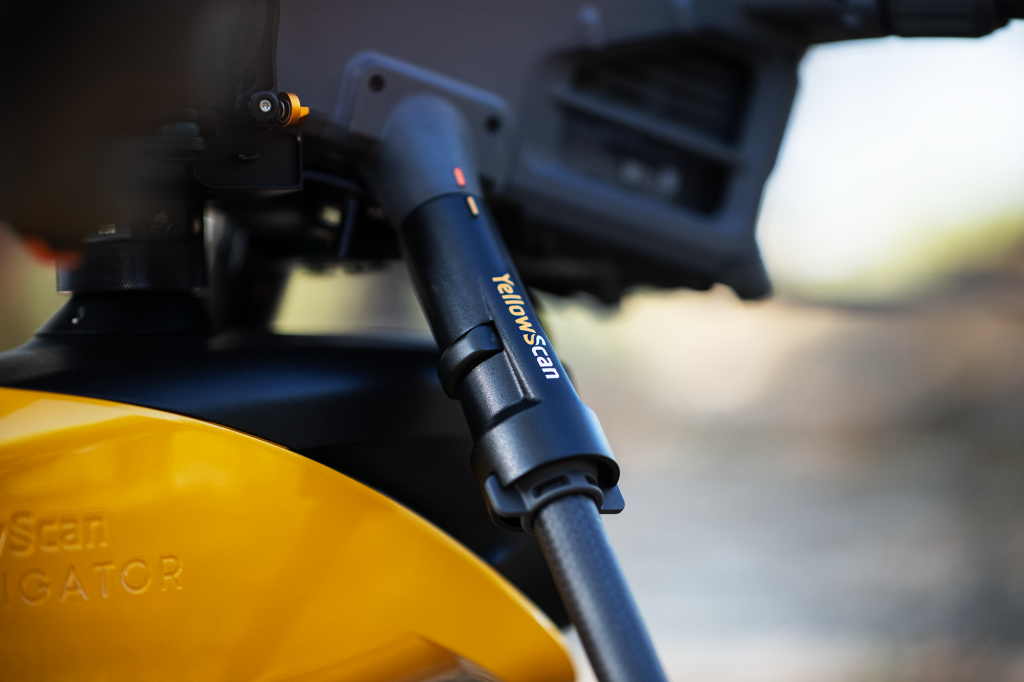

The DJI Matrice 400 combines with the landing gear extenders.
Required for YellowScan Voyager and YellowScan Navigator integrations, the Landing Gear Extenders provide the additional clearance needed for safe takeoff, landing, and field operations. The extenders are also compatible with other large payloads to integrate with the DJI Matrice 400.
This combination of the Universal Mounting Bracket and Landing Gear Extenders allows operators to deploy the full YellowScan LiDAR range on the DJI Matrice 400 with confidence and efficiency.
Total weight (Mounting bracket + Extenders): 663g (23.38 oz)
